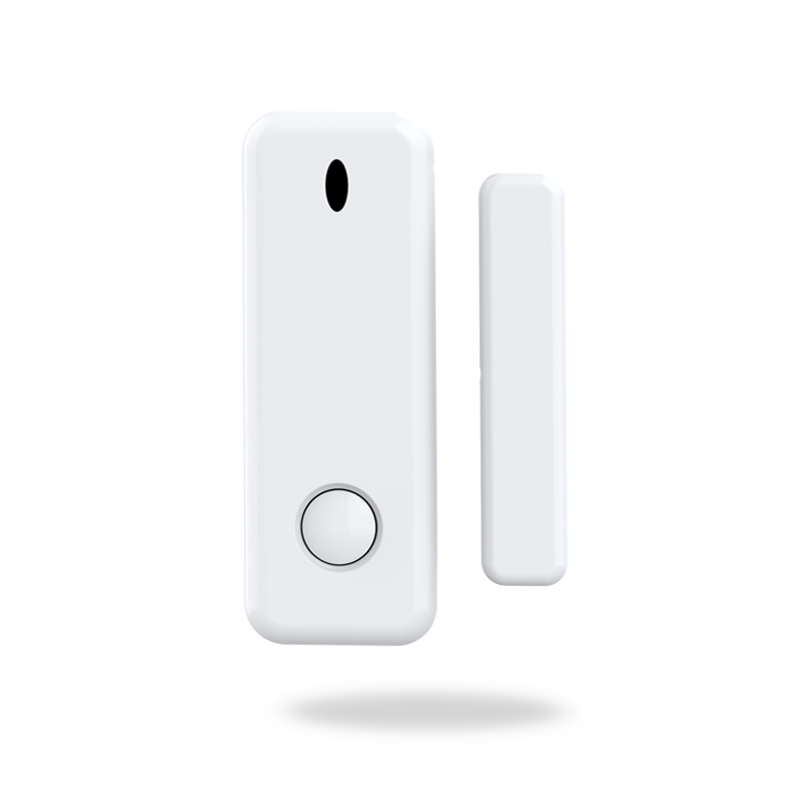

Wireless Door Sensor

The ZX-D10 door sensor works well with any door window or opening. When alarm is triggered (separated) an alarm signal will be sent to the system controller for appropriate response. If connected to a GSM alarm system low-battery alerts via SMS text messages will be available.



Features:

Tamper switch
With Unclosed door / window notification.
Door/window contact sensor
with emergency button
Low power consumptionlong battery life for standby

Share:

Product Description


Specification

1. Power Supply                DC 3V (CR2032 Lithium Battery x1)
2. Standby Current           <1uA
3. Alarm Current               <15mA
4. Transmitting Distance    <80m (Open Area/No Interference)
5. Radio Frequency            433Mhz
6. Operation Condition       Temperature:0~55℃
                                       Relative humidity: <80%(non-condensing)
7. Transmitter dimension    69*23*9 mm (L*W*H)
8.Magent dimensions          52*8.5*9 mm ( L*W*H)
