【ZX-C48】
AI PTZ Camera

ZX‑C48 AI PTZ network camera offers optional 2MP /3MP CMOS image sensor. It supports dual‑light night vision with smart, full‑color and infrared modes. Equipped with two‑way audio, human, motion and sound detection, it delivers instant mobile alarm push. It accepts max 256G SD card, adopts H.264 encoding, works with 12V power supply. Supporting 2.4G/5G WiFi and Bluetooth quick pairing, it is perfect for indoor and outdoor home security monitoring.

Product Details Specifications Technical Q&A Product Inquiry

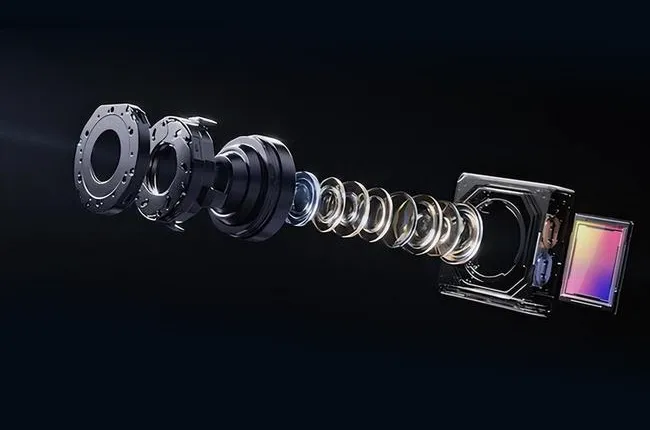

Optional 2MP /3MP High‑Definition Image Sensor

ZX‑C48 provides two sensor options: 1/4.5'' 2MP CMOS and 1/2.8'' 3MP CMOS sensor. Delivering crisp, detailed surveillance footage under H.264 encoding, it optimizes video file size while preserving image clarity. Whether you need standard‑definition monitoring or higher‑resolution recording for identifying details, this camera meets different security requirements. It reproduces real‑world colors for reliable live preview and local playback for daily property protection.

Optional 2MP /3MP High‑Definition Image Sensor
Dual‑Light Night Vision with Multiple Working Modes

Featuring dual‑light design, ZX‑C48 supports three selectable modes: smart mode, full‑color mode and infrared night‑vision mode. White fill lights generate vivid color images at night, while infrared LEDs deliver clear black‑and‑white footage in total darkness. Smart mode automatically switches light sources according to ambient brightness. No extra auxiliary lighting needed. It ensures reliable round‑the‑clock monitoring for yards, hallways and other monitoring areas day and night.

Dual‑Light Night Vision with Multiple Working Modes
Multi‑Dimensional Smart Detection & Mobile Alarm Push

This PTZ camera integrates human detection, motion detection and sound detection. Once targets or abnormal sounds are captured, it sends real‑time alarm push notifications to your mobile phone. You will get timely alerts for unexpected events without constant live‑stream checking. It reduces false alarms with human‑target filtering. Whether you are at home or away, you can quickly respond to potential safety risks and boost overall site security level.

Multi‑Dimensional Smart Detection & Mobile Alarm Push
Two‑Way Audio & Flexible Local Storage

Built‑in microphone and speaker enable real‑time two‑way audio communication. You can remotely talk with people on‑site, warn intruders or check on family members. For recording storage, ZX‑C48 supports SD card up to 256G for local video saving. You can review historical footage conveniently via APP. Combined with 12V power supply design, it guarantees stable continuous operation for long‑term home and commercial surveillance deployment.

Two‑Way Audio & Flexible Local Storage

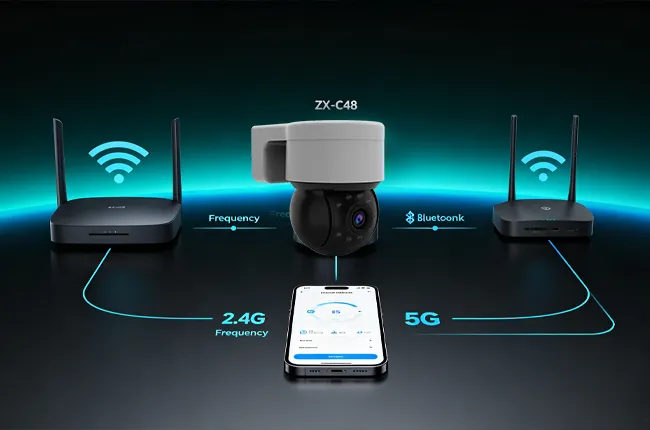

Dual‑Band WiFi & Bluetooth Quick Network Configuration

Supporting both 2.4G and 5G dual‑band WiFi, ZX‑C48 delivers stable wireless network connection. Bluetooth‑assisted pairing greatly simplifies device activation process. You do not need complicated manual WiFi input steps. Just finish quick configuration via mobile APP. 12V power supply ensures steady power input. Suitable for multiple monitoring locations, it brings easy installation and reliable wireless performance for home and small‑scale surveillance projects.

Dual‑Band WiFi & Bluetooth Quick Network Configuration

  • Product Model:ZX-C48
  • Image Sensor:1/2.9" 3MP CMOS
  • Effective Pixels:2304(H) x 1296(V)
  • Video pixels:1296p
  • Shutter:1/15~1/10,000s
  • Min. Illumination:Color 1Lux@F2.0,Black/White 0.01Lux@F2.0
  • Day/Night:Auto(ICR)/Color/B&W
  • Lens&FOV(H/V/D):4.0mm@F2.0, 87°/ 43°/104°
  • LED:White 4 PCS+IR 4 PCS
  • Pan and tilt:Pan: 0° to 355°, Tilt: 0° to 90°
  • SoC:FH8626V200
  • Bluetooth Module chip:BL-M6355CU1/AIC8800D40L
  • WiFi chip:SV6355/AIC8800D40L
  • APP:Tuya Smart/Smart Life
  • Firmware version:V1.0.0
  • Compression:H.264
  • Bit Rate:32Kbps~2Mbps
  • Frame Rate:15fps
  • Dual Stream:Yes
  • Audio Input/Output:Built-in mic/speaker
  • Audio:Two way
  • Storage:SD card(Max 256GB), Cloud storage
What resolution versions are available for ZX‑C48 PTZ camera?
It has two sensor options: 2MP (1/4.5'' CMOS) and 3MP (1/2.8'' CMOS). You can pick the pixel version according to your monitoring detail requirements. Both versions support H.264 encoding, dual‑light night vision and full set of smart detection functions.
What is the maximum storage capacity this camera supports? Does it support 5G WiFi?
ZX‑C48 supports SD card up to 256GB for local recording. It is compatible with both 2.4G and 5G WiFi bands. Bluetooth‑aided configuration is available to speed‑up pairing with your home network. It runs on 12V DC power supply (power adapter included in package).
*
*
*
*
*
*
*
