【ZX-C12】

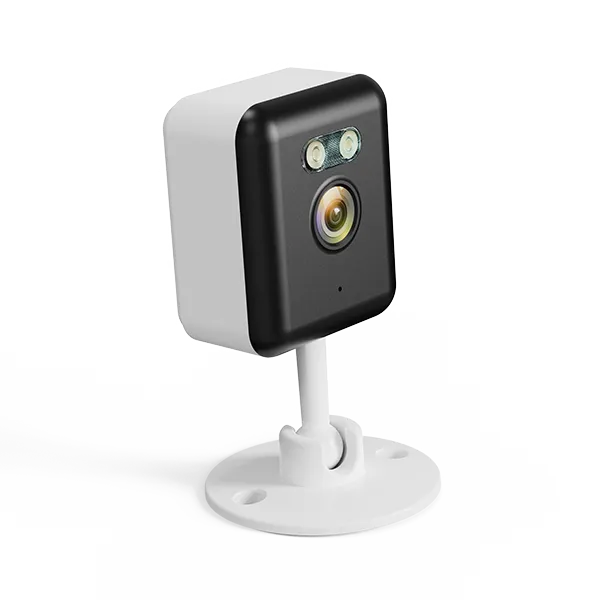

Smart Cube Camera

Smartrol C12 indoor surveillance camera delivers ultra-clear 4MP HD footage with an F1.0 large aperture lens, capturing 8× more light than standard lenses for vivid details day and night. Equipped with starlight full-color night vision, it realizes bright colored monitoring in dim environments without light pollution. It supports 2.4G WiFi, accurate human detection, real-time two-way voice intercom, and 24/7 continuous recording. Remote live view, playback and one-click sharing are available via the Tuya App, alongside flexible installation for full home coverage.

Product Datasheet
Product Details Specifications Technical Q&A Product Inquiry

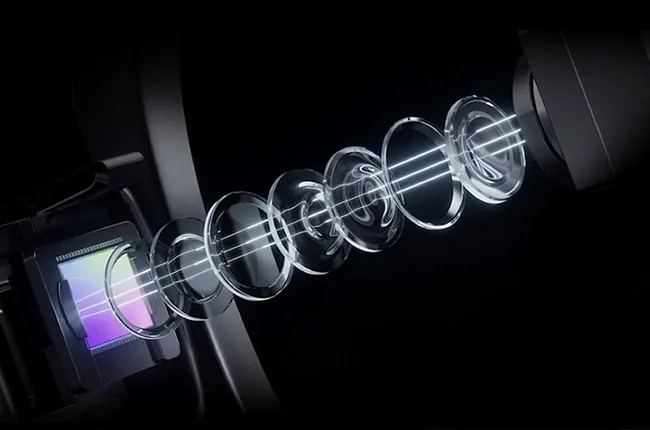

4MP HD & F1.0 Large Aperture Lens

Boasting 4MP high-definition resolution and an F1.0 super large aperture optical lens, this camera absorbs eight times more light than ordinary F2.8 lenses. It optimizes optical microstructure through precise lithography to suppress halo and boost brightness. Compared with 2MP cameras, it restores richer, truer color details, presenting sharp, undistorted images whether in bright indoor spaces or low-light twilight scenes.

4MP HD & F1.0 Large Aperture Lens
Starlight Full-Color Night Vision, Night Equals Day

Adopting advanced starlight sensor technology, the C12 outputs full-color clear images relying merely on faint ambient night light, eliminating the need for dazzling supplementary lights that cause light pollution. It expands night vision range and refines image textures, letting you identify people, pets and objects clearly after dark, delivering monitoring effects nearly identical to daytime footage without disturbing your family.

Starlight Full-Color Night Vision, Night Equals Day

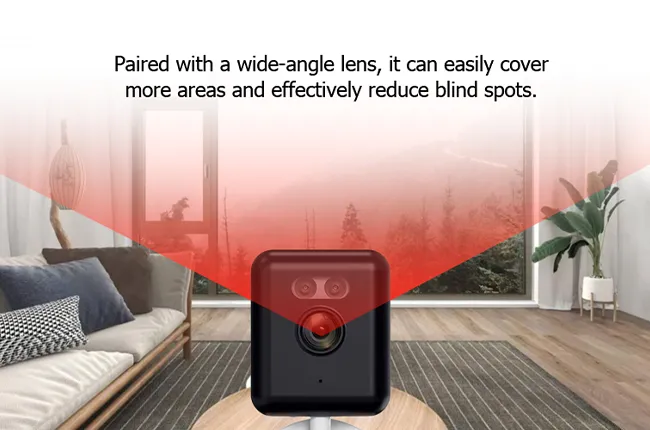

Wide-Angle Lens + 24/7 Non-Stop Monitoring

Built-in wide-angle lens eliminates home blind spots to cover larger indoor areas like living rooms, nurseries and offices completely. It supports round-the-clock continuous video recording without interruption, safeguarding your property all day long. Combined with smart human detection, it filters invalid motion alerts and only pushes notifications when human figures appear, reducing useless disturbance effectively.

Wide-Angle Lens + 24/7 Non-Stop Monitoring
Two-Way Voice Intercom & Built-In Sensitive Microphone

Integrated high-sensitivity microphone and speaker enable smooth real-time two-way audio calls via the Tuya App. You can remotely talk to elders, kids or pets at home anytime. The microphone records original live sound synchronously with video footage, reproducing real scene audio without silent recordings, perfect for daily family communication and visitor identity verification at home.

Two-Way Voice Intercom & Built-In Sensitive Microphone

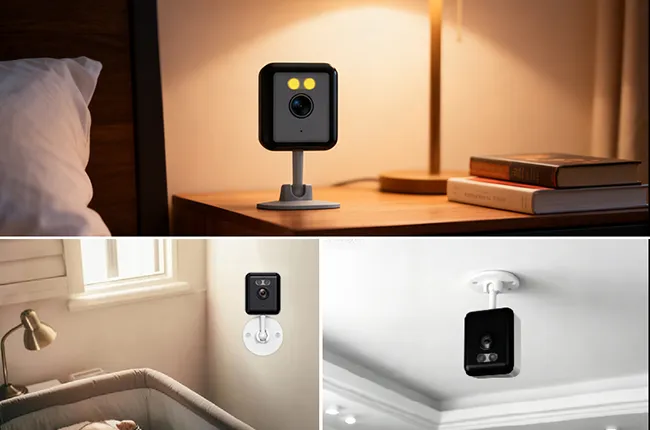

Tuya App Remote Control & Flexible Storage & Easy Installation

Compatible with the Tuya Smart App, it supports mobile remote live viewing, video playback, free video download and one-click device sharing with family. It supports local TF card storage and cloud storage for video backup. The camera features multiple mounting ways including desktop placement and wall mounting, with simple assembly steps requiring no professional tools for quick DIY setup.

Tuya App Remote Control & Flexible Storage & Easy Installation

  • Product Model:ZX-C12
  • Image Sensor:1/2.8" 4MP CMOS
  • Effective Pixels:2560(H) x 1440(V)
  • Video pixels:1440p
  • Shutter:1/15~1/10,000s
  • Min. Illumination:Color 1Lux@F2.0,Black/White 0.01Lux@F2.0
  • Day/Night:Auto(ICR)/Color/B&W
  • Lens&FOV(H/V/D):3.6mm@F2.0, 87°/ 43°/104°
  • LED:White 2 PCS+IR 2 PCS
  • Pan and tilt:Manually
  • SoC:FH8626V200
  • Bluetooth Module chip:BL-M6355CU1/AIC8800D40L
  • WiFi chip:SV6355/AIC8800D40L
  • APP:Tuya Smart/Smart Life
  • Firmware version:V1.0.0
  • Compression:H.264
  • Bit Rate:32Kbps~2Mbps
  • Frame Rate:15fps
  • Dual Stream:Yes
  • Audio Input/Output:Built-in mic/speaker
  • Audio:Two way
  • Storage:SD card(Max 256GB), Cloud storage
Does this C12 camera work with 5G WiFi networks?
The Smartrol C12 indoor camera only supports 2.4GHz WiFi connection, which boasts wider signal penetration and better wall-crossing performance for stable home monitoring. 5GHz WiFi bands are not compatible. You can switch your router to separate 2.4G and 5G networks to connect the camera smoothly.
What storage methods does the C12 surveillance camera support?
It offers two storage solutions: local TF card storage (supports large-capacity memory cards for offline video saving and playback) and optional cloud storage for encrypted remote video backup. All recorded footage can be viewed, downloaded and shared remotely on the Tuya App, ensuring you never miss important monitoring clips.
*
*
*
*
*
*
*
